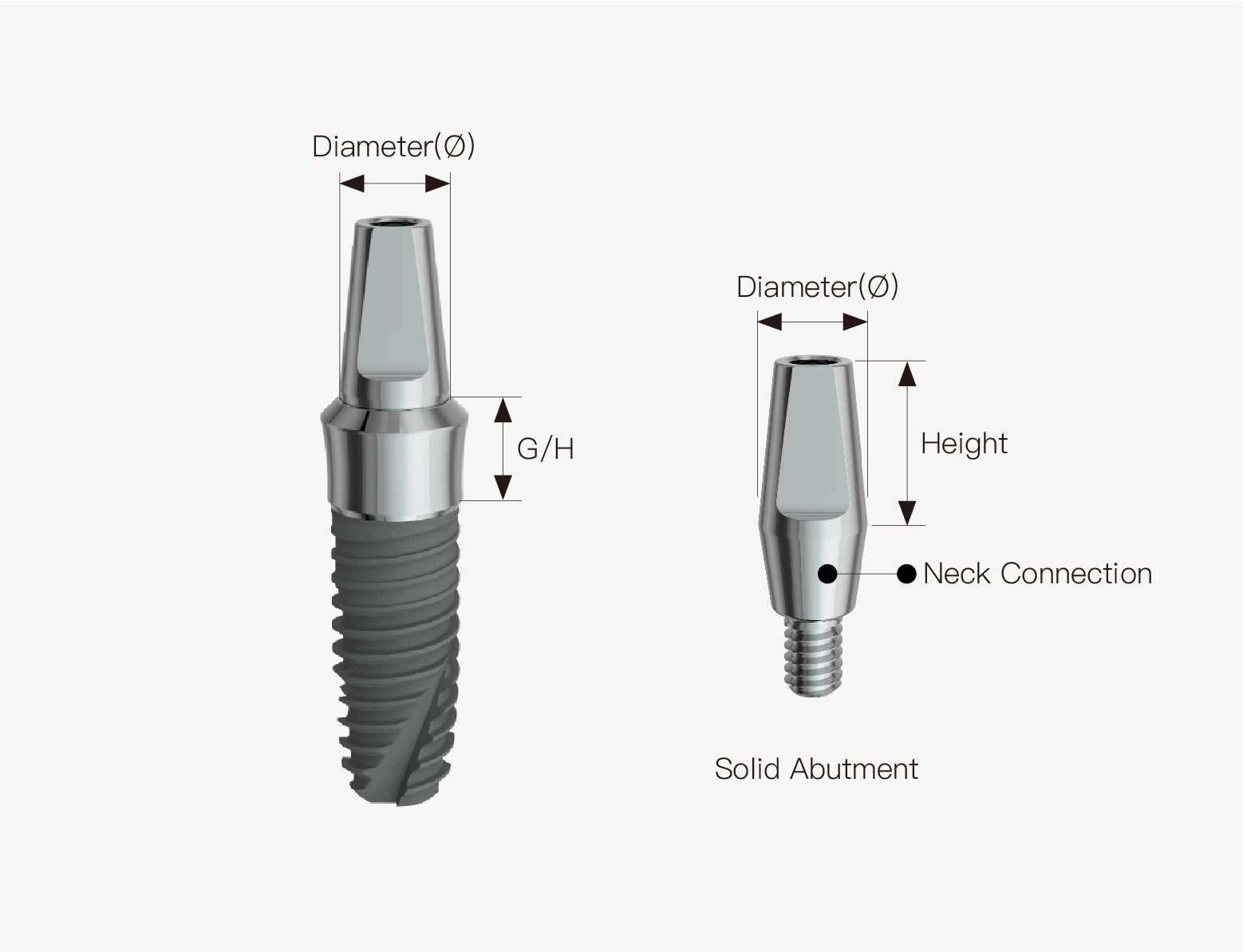

Solid Abutment
Items Factors Specifications
1.Neck Connection Implant Connection Regular platform / Wide platform
2.Single crown or bridge Number of Implant Non-Octagon
3.Diameter distance to adjecent teeth Ø4.8/6.5mm
4.G/H implant placement depth soft tissue thickness and profile 1.8/2.8mm
5.Height Height of adjecent teeth Occlusal height 4.0/5.5/7.0mm
Features
Cement retained restoration
Material: Titatinum Alloy(TC4ELI)
Recommended Maximum Torque

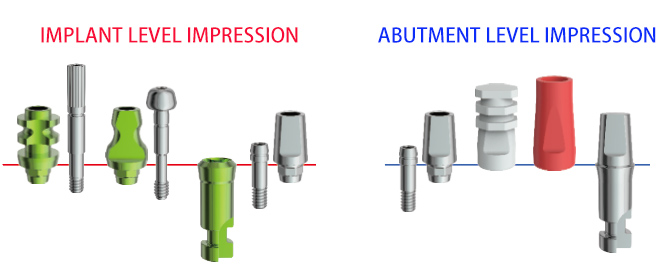

Abutment Level Impression

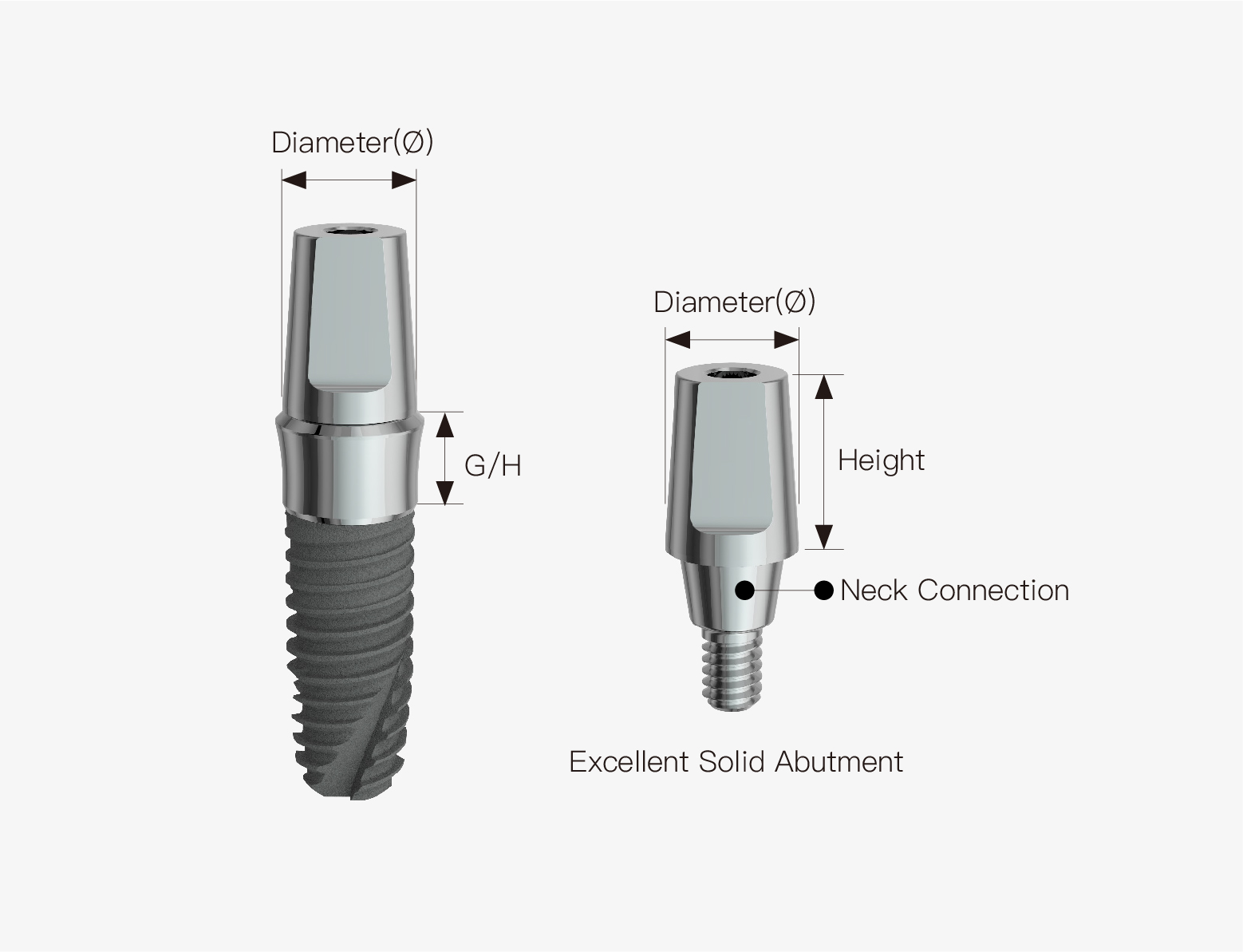

Excellent Solid Abutment
Items Factors Specifications
1.Neck Connection Implant Connection Regular platform / Wide platform
2.Single crown or bridge Number of Implant Octagon / Non-Octagon
3.Diameter distance to adjecent teeth Ø4.8/6.5mm
4.G/H implant placement depth soft tissue thickness and profile 1.8/2.8mm
5.Height Height of adjecent teeth Occlusal height 4.0/5.5/7.0mm
Features
Cement retained restoration
Material: Titatinum Alloy(TC4ELI)
Recommended Maximum Torque
Abutment Level Impression

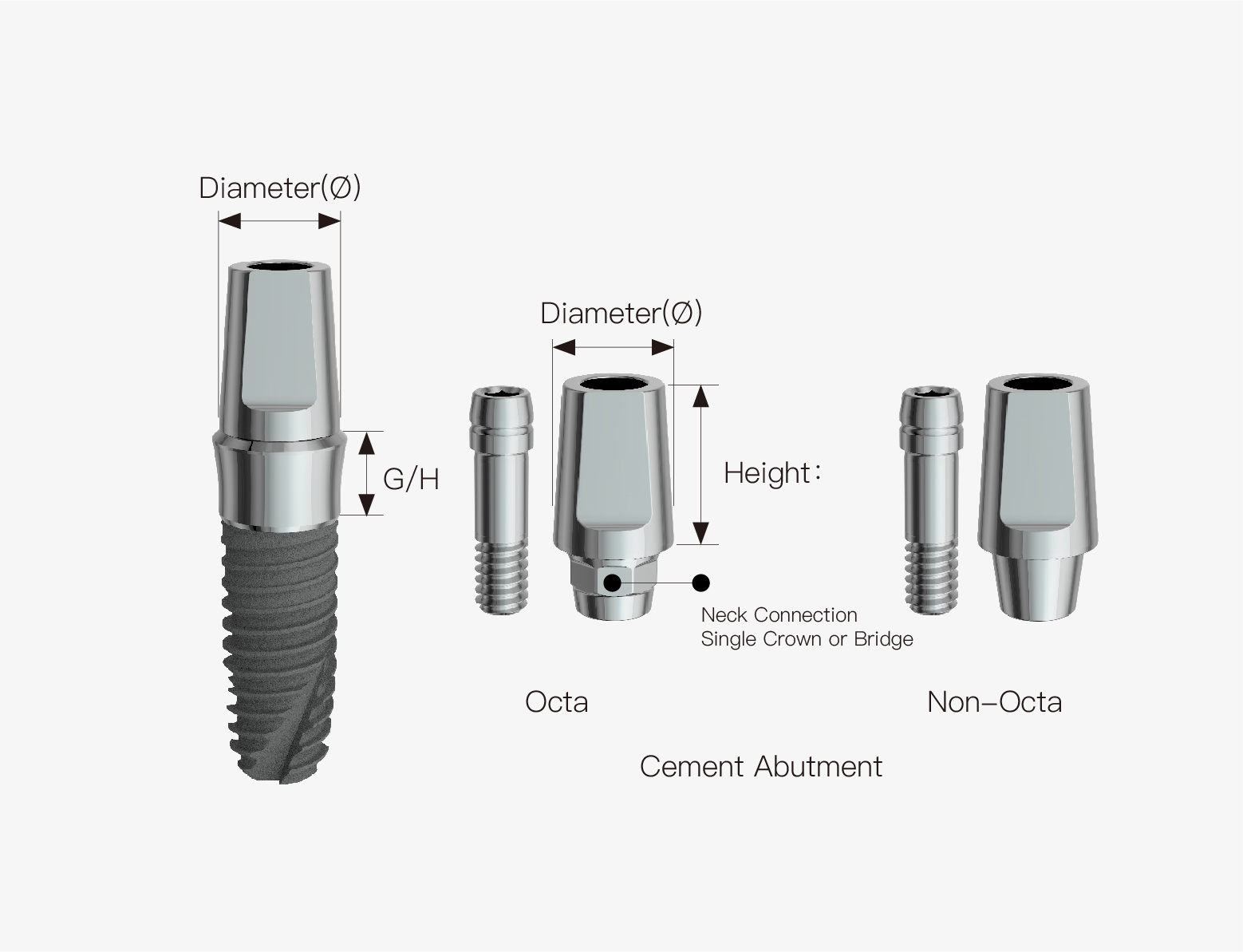

Cemented Abutment
Items Factors Specifications
1.Neck Connection Implant Connection Regular platform / Wide platform
2.Single crown or bridge Number of Implant Octagon / Non-Octagon
3.Diameter distance to adjecent teeth Ø4.8/6.5mm
4.G/H implant placement depth soft tissue thickness and profile 1.8/2.8mm
5.Height Height of adjecent teeth Occlusal height 4.0/5.5/7.0mm
Features
Cement retained restoration or combination retained resoration
Material: Titatinum Alloy(TC4ELI)
Recommended Maximum Torque
Implant Level Impression & Abutment Level Impression
Angled Abutment
Items Factors Specifications
1.Neck Connection Implant Connection Regular platform / Wide platform
2.Single crown or bridg Number of Implant Octagon / Non-Octagon
3.Diameter distance to adjecent teeth Ø4.8/6.5mm
4.G/H implant placement depth soft tissue thickness and profile 1.8/2.8mm
5.Height Height of adjecent teeth Occlusal height 8.0mm
Features
Cement retained restoration or combination retained resoration
Material: Titatinum Alloy(TC4ELI)
Angles: 15°/20°
Recommended Maximum Torque
Implant Level Impression
Temporary Abutment
Items Factors Specifications
1.Neck Connection Implant Connection Regular platform / Wide platform
2.Single crown or bridge Implant amount Octagon / Non-Octagon
3.Diameter distance to adjacent teeth Ø4.8/6.5mm
4.G/H implant placement depth soft tissue thickness and profile 1.8/2.8mm
Features
Temporary Restoration
Material: Titatinum Alloy(TC4ELI)
Recommended Maximum Torque
Implant Level Impression
